World-Class Manufacturing
“Forms & Gears houses one of the best equipped and largest privately owned tool room facilities in India”
– Economic Times, 2007
Our State-of–the–art manufacturing facility is situated in the heart of Chennai, India at the Guindy industrial estate with the best-imported and Indian machine installations; state-of-the-art temperature, dust and humidity controlled inspection facility.
Machinery
MOTHER MACHINE JIG BORER – 1
Bed size of 800 x 800 mm capable of 1 micron optical readout and 5 micron digital readout.

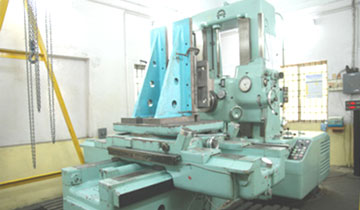

MOTHER MACHINE JIG BORER – 2
Bed size of 800 x 800 mm capable of 1 micron optical readout and 5 micron digital readout.
MOTHER MACHINE JIG BORER – 3
Bed size of 900 x 450 mm capable of 5 micron digital readout.

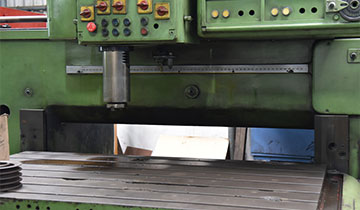

VERTICAL BORER – 4
Bed size of 1600 x 1000 mm capable of 5 micron digital readout.
HORIZONTAL BORER – 5
Bed size of 1000 x 1000 mm capable of 5 micron digital readout.

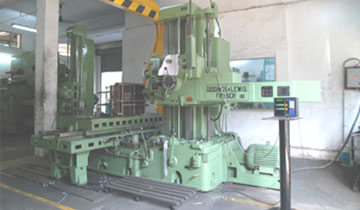

HORIZONTAL BORER – 6
Bed size of 1600 x 1000 mm capable of 5 micron digital readout.
VERTICAL MACHINING CENTRE – 1
With 1200 x 510 mm pallet.
HORIZONTAL MACHINING CENTER – 1
With 800 x 800 mm pallet.
MILLING - 1
Bed size of 1270 x 254 mm.
MILLING - 2
Bed size of 1000 x 220 mm.
MILLING - 3
Bed size of 1000 x 220 mm.
MILLING - 4
Horizontal Universal with vertical attachment bed size of 1100 x 310 mm.

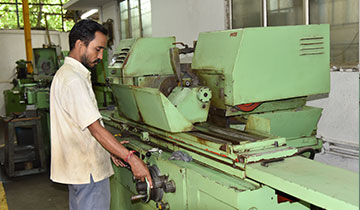

CYLINDRICAL GRINDING – 1
Universal size: K 130 / 500 U.
CYLINDRICAL GRINDING – 1
SURFACE GRINDER – 1
Universal size: 1100 x 560 mm.
SURFACE GRINDER – 2
Universal size: 750 x 250 mm.
SURFACE GRINDER – 3
Universal size: 750 x 250 mm.
SURFACE GRINDER – 4
Universal size: 800 X 250.
TOOL & CUTTING GRINDER – 1
Universal size: 750 x 250 mm.
TURNING - 1
LTM 20 / 1500
DRILLING – 1
Bed Size 650 x 650 mm
DRILLING – 2
Bed Size 650 x 650 mm
DRILLING – 3
Bed Size 650 x 650 m

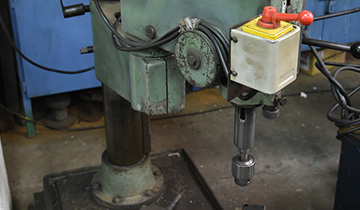

DRILLING – 4
Bed Size 650 x 650 m

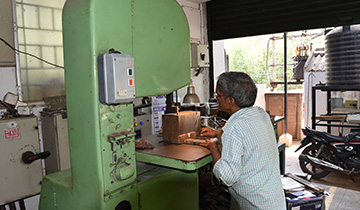

SAW / CUTTING-1
Vertical bandsaw Machine – 300 mm
SAW / CUTTING-2
Hacksaw Machine – 300 mm
WELDING-1
CO2 Welding – Migatronic 305 amps
WELDING-2
Arc Welding – Indarc 300 amps

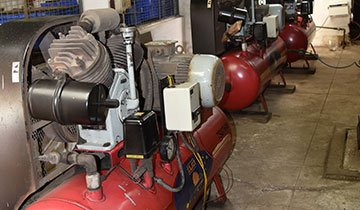

COMPRESSOR
5 hp
GENERATOR
30 hp
Other Machineries
TURNING - 1
LTM 20 / 1500
DRILLING – 1
Bed Size 650 x 650 mm
DRILLING – 2
Bed Size 650 x 650 mm
DRILLING – 3
Bed Size 650 x 650 m
DRILLING – 4
Bed Size 650 x 650 m
SAW / CUTTING-1
Vertical bandsaw Machine – 300 mm
SAW / CUTTING-2
Hacksaw Machine – 300 mm
WELDING-1
CO2 Welding – Migatronic 305 amps
WELDING-2
Arc Welding – Indarc 300 amps
COMPRESSOR
5 hp
GENERATOR
30 hp
State-of–the–art Inspection Facilities
Temperature Control Inspection Facility, capable of measuring 1 micron accuracy. Maximum job size 1500 x 1200 x 1000.
Design Facilities
Forms and gears has a team of very senior and experienced designers to offer the customer solutions for all types of components. The fixture building team is backed by the technical capabilities of ASM Technologies 650 design engineers.
Design Library
- Solid Works 3D
- DWG Editor 2D
- Networked licence of AutoCAD, Inventor 3D
- Solid Cam
- A Library of 3D detailed Designs and concept drawings of all types of Auto & Tractor components, Textile Machinery Components, Valves, Earthmoving Equipment Components etc
- CAD - Unigraphics NX, Catia, Creo, SolidWorks, Inventor, and AutoCAD
- Simulation: ANSYS, Abacus, COMSOL, HyperMesh, SolidWorks Simulation
- PLM: Teamcenter, Windchill, Enovia, Solidworks PDM
- CAD – Cadence Orcad, Altium, Cadence Allegro, Mentor Graphic Pads, LP Wizard
- Simulation: Hyperlynx
- E3S (Zuken), Catia V5/V6 and UG NX Electrical Harness Design
Operating System
- Linux
- RTOS
- Embedded C/C++, PyQt, LabVIEW
- Graphics
- Bus Architecture - PCI, PCIe, USB, EISA, VME VPX and VXI
Protocols
- AUTOSAR
- CAN
- Gb Ethernet
- EtherCAT
- SFPDP
- SRIO
- MIL-1553B
- ARINC 429, ARINC 717, ARINC 818
- RS232, RS485

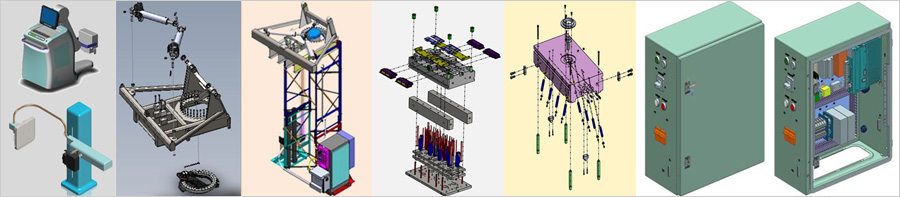

Design Capabilities
Forms and Gears has designed a wide variety of fixtures for components for the auto industry, tractor industry, power sector and textile machinery. We are specilaists in cylinder block and cylinder head machining fixtures which require very close tolerances and specialized designs for each variety of block and head fixtures. These have been designed and manufactured for numerous customers all over India and abroad.
ASM Technologies Ltd has a stong design team with over 650 engineers.
The Fine Art of Hand Scraping
To get very fine geometrically accurate flat surfaces, hand scraping is used. Hand scraping is an art that can be done only by very skilled and highly experienced workmen. Scraping involves using a flat scraper, which is a hand tool with a flat edge, to remove very small amounts of metal from a surface. The Roughness Average Ra achieved during hand scraping is in microns. Machine beds are often hand scraped to achieve the desired flatness. All the fixture bases manufactured by RV Forms and Gears are hand scraped. The worlds best machine tool makers still use scraping.
In-House & On-site Prove Out
A dedicated team of application engineers are available for prove out of the Fixture anywhere in the world. The In-House Fixture Prove Out can be done on our in-house horizontal and vertical Mazak machining centers.
