SmartFix4.0
Here is the smartest way to make your fixtures intelligent!
SmartFix4.0 from Forms & Gears/ASM is the smartest way to transform your existing fixture/workholding in to intelligent, IoT enabled, Industry 4.0 fixtures/workholdings. Talk to our experts and know how you can increase your productivity with lesser manpower.
Call us now at +91 7823962010
Forms & Gears/ASM Technologies
Forms and Gears, Asia’s leading fixture builder, has been on the forefront of fixture building technology for over 47 years. Now Forms and Gears’ fixture building expertise, in partnership with ASM Technologies’s IT, Data Analytics and Artificial Intelligence strengths, brings you SmartFix4.0 – a revolution in fixture building and work-holding.
Need help on digital transformation of your existing fixture / workholding? Submit this form now.
Smart Fixtures - The Next Revolution In Digital Manufacturing
SmartFix4.0 is a precision work-holding device with the ability to collect, transmit and analyse data in a useful format to the end user. Developed for the first in the world, SmartFix4.0 takes the world of work-holding and fixtures into Industry 4.0 standard, without replacing the existing fixture or workholding. And that’s really a revolution.
Tooling Industry 4.0 and Digitisation partner
Features
- Can be mounted on existing fixtures
- Industry 4.0 compliant and IoT ready
- Cloud-based application
- Graphical data visualizations
- Multiple sensor data visualization
- Threshold breach indicators
- Tool wear analytics
- Cost per component analytics
- Vibration Alerts
- Declamp alerts
- Output of Fixture and machine
- Predictive maintenance of fixture and machine
- Operator efficiency analytics
- Historical performance analysis of machine, powerpack, tools and fixture
- Powerpack oil level and oil contamination alerts
Advantage SmartFix4.0
- Analytics which are easy to understand reports
- Insights that save cost and improve efficiency
- In-depth cost analysis makes costing realistic
- Tool wear analytics to optimise consumable costs.
- Highly cost-effective as it enables intelligence on existing fixtures
- Predictive maintenance ensures long life of machines and tools
Want to make your fixtures and workholdings smarter?
How it works
As the fixture is in continuous contact with the component it is the ideal device to collect and analyse data at a component level. Sensors to monitor vibration, pressure, and component sensing are mounted on the fixture. And sensors to monitor oil levels and temperature are mounted on the powerpack.
The high volume of data collected from these sensors are continuously transmitted wirelessly to the cloud where it is parsed and stored for analysis.

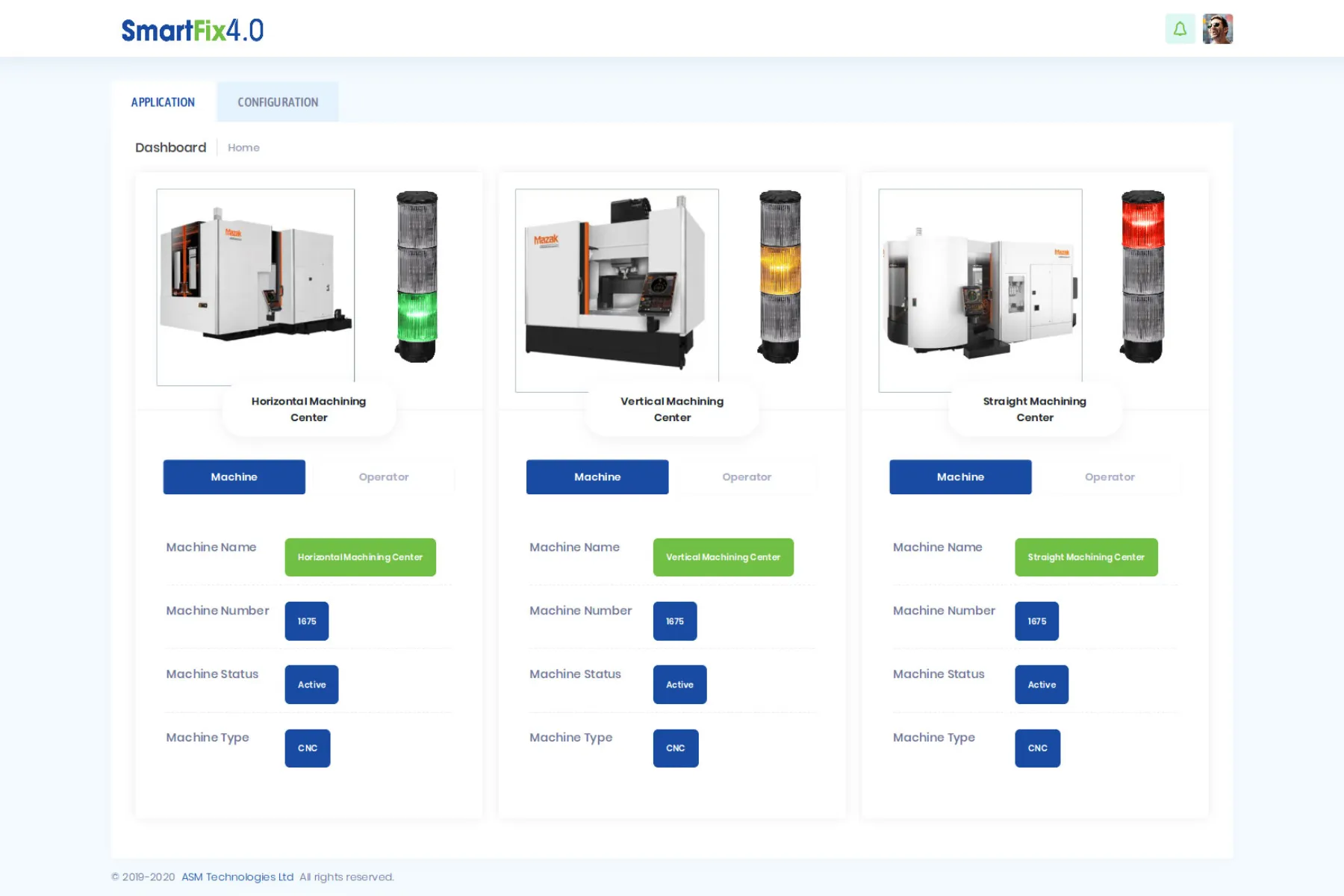

The raw data is then analysed using Data Analytic and Artificial Intelligence tools and sent back to a custom built Dashboard of the end user, that resembles their factory floor, showing all the machines in action as well as a quick summary on the health of each machine, fixture and powerpack.
The user can click on each machine to get a more detailed understanding of the analysed data per fixture. Data per sensor is visualized graphically with an ability to go back and see historical performance of the machine with this fixture.
For example, an analysis of data collected from vibration could reveal a wide variety of information like casting tolerances, vibration level comparison between tools and vibration comparison across machines in the plant. This real time data could result in productivity increases, optimising tool life and increasing safety.
If the vibration crosses a set upper threshold limit the system can be designed to shut the machine off remotely through the emergency switch of the machine.
Sensors to monitor pressure would alert the operator via their phone or on any smart device and this can again be linked to the machine emergency switch if required to ensure that in case of a sudden pressure drop the machine is switched off.
By monitoring the clamp / decamp cycles, alerts for maintainence of fixtures, ordering of spares and seal kits would also be automatically generated by the system and alerts sent via smart phone to the concerned people.
With Artificial Intelligence and Machine Learning, SmartFix 4.0 can also help the user to be more proactive on machine, tool and fixture performance as well as how machines are performing compared to each other.
Historical data can be analysed and a comparison of various parameters can be made across all machines in the plant giving the management useful information to reduce costs, increase efficiencies and improve quality.

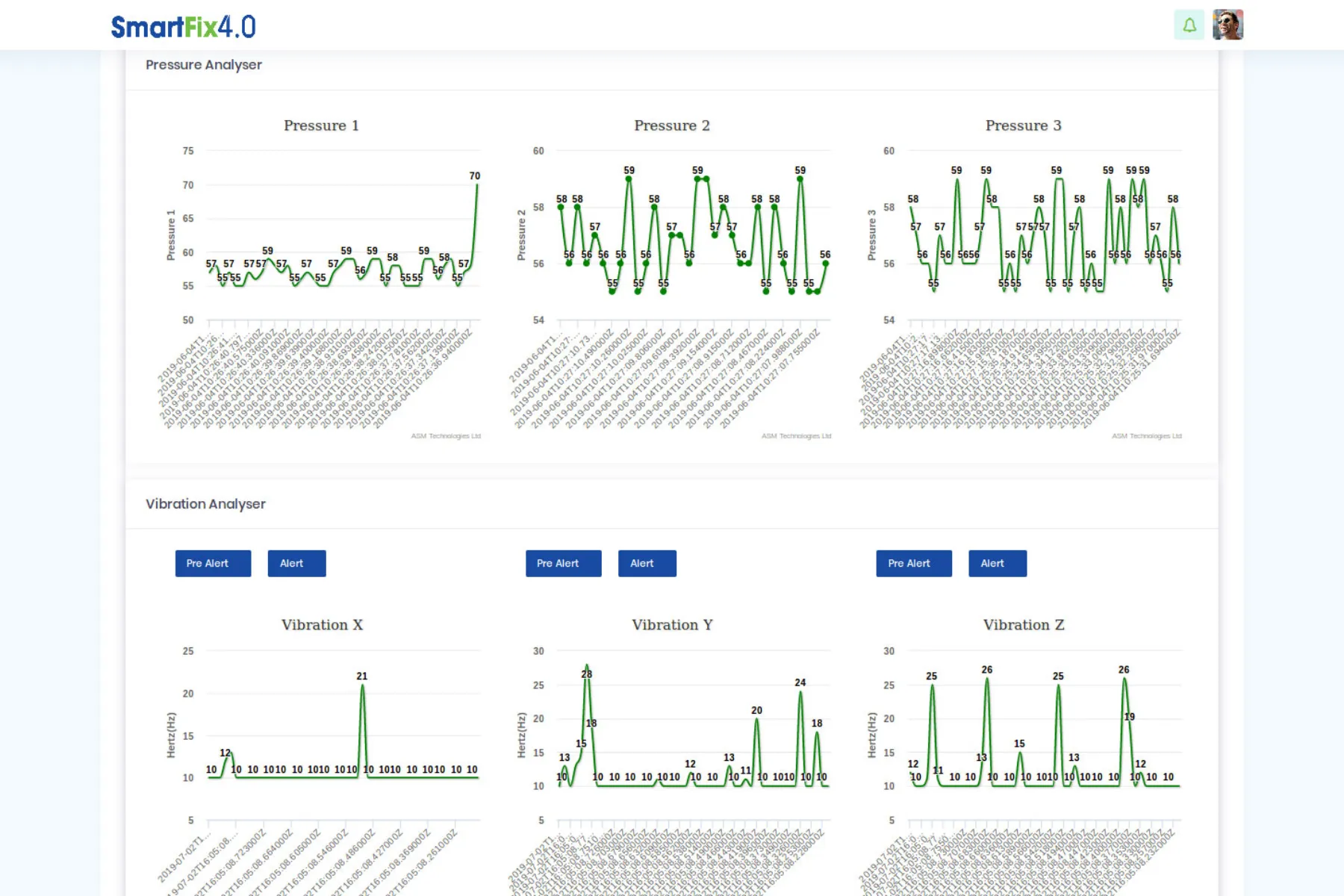

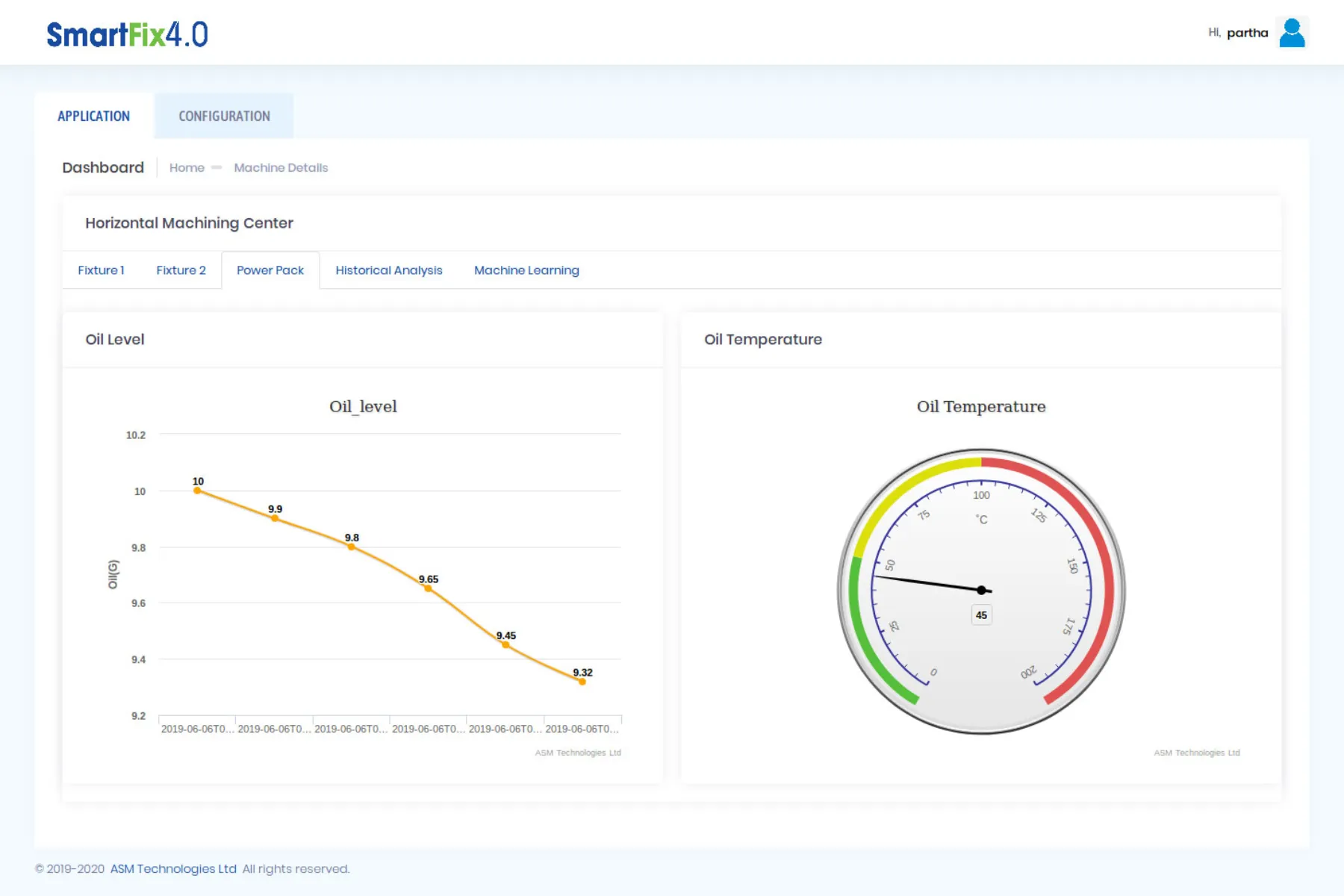

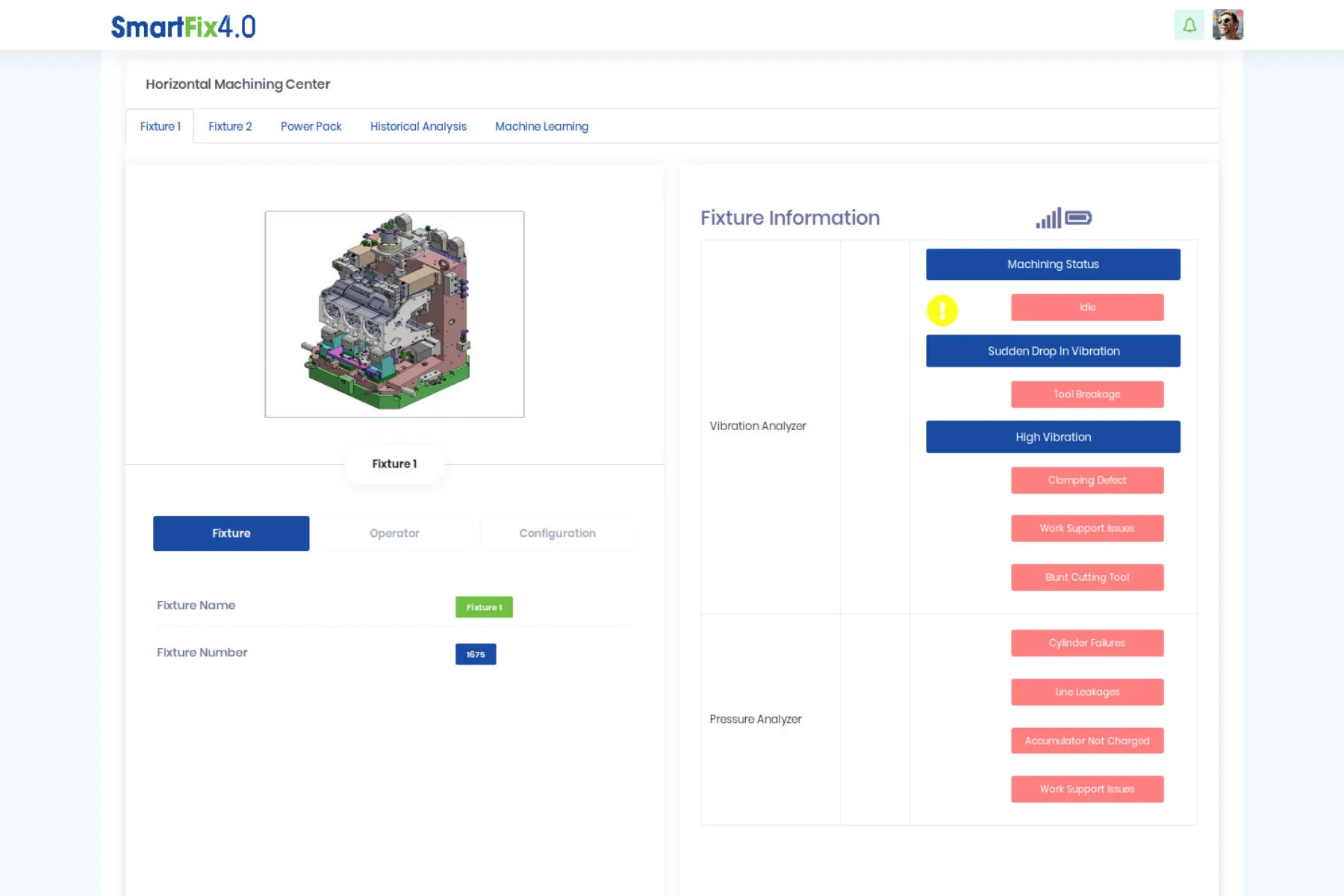

SmartFix4.0 Screenshots
Analytics for SmartFix 4.0
- Industry Pioaneer in Fixture Level AI
- Analytics is tailor made case-by-case to solve unique problems and work in all kinds of situations.
- Leverage Machine Learning and Artificial Intelligence (ML/AI) to provide a wide range of benefits.
- Machine Learning models constantly improve with more data to generate best outcome.
Tool Wear Analytics

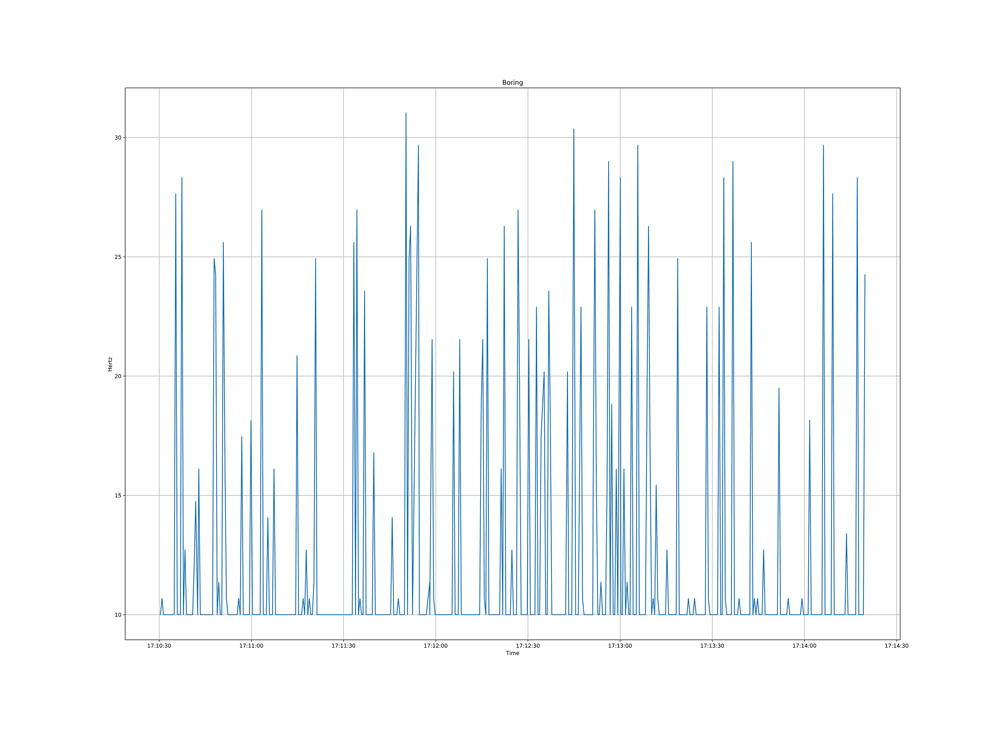

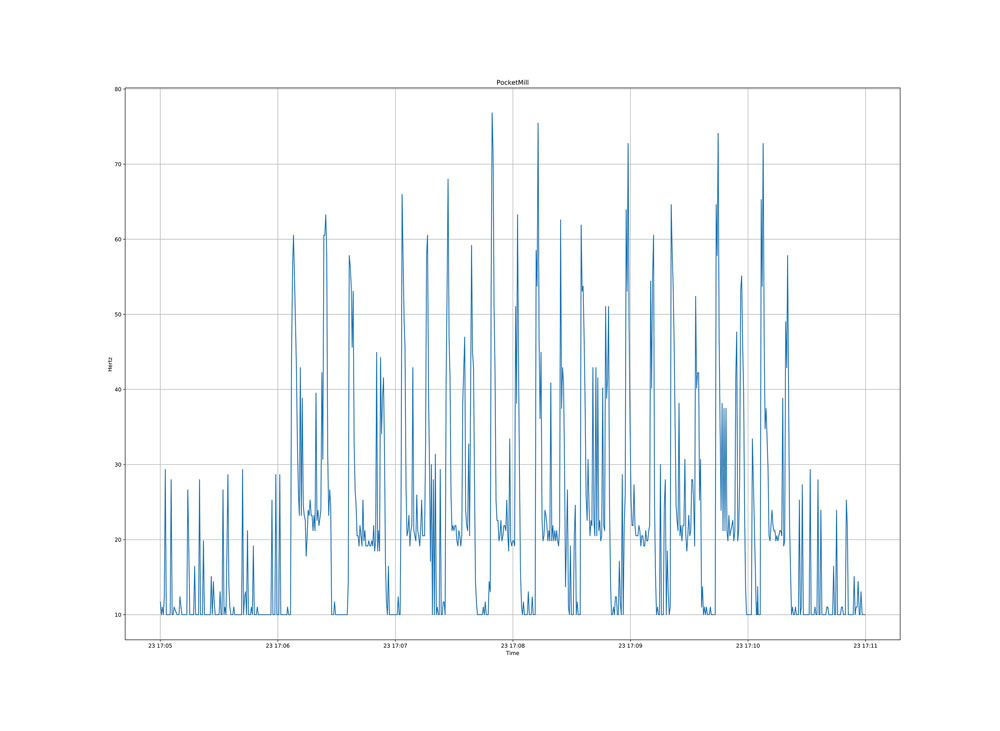

- The unique vibration patterns from each and every machining operation are analyzed using AI & ML to predict tool wear
- Estimate cost per component per tool
- Cost saving in tool consumption
